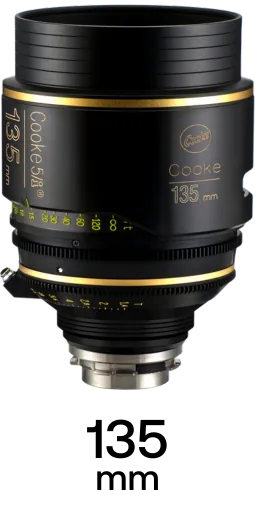

Cooke S5/i 135mm T1.4 Cinema Lens with PL-Mount
Overview
The Cooke S5/i 135mm T1.4 Cinema Lens with PL-Mount is a telephoto spherical prime that covers Super 35 mm sensors. Telephoto focal lengths compress perspective and throw backgrounds well out of focus, letting camera operators isolate a subject from a busy environment or reach action at a distance. A T1.4 maximum aperture puts this among the fastest cine glass available, giving very shallow depth of field and workable exposure in low light, and the lens closes to T22. It uses a PL-Mount with manual focus. Cooke /i metadata passes through the mount for post and VFX workflows.
Features
Key Features
Telephoto Super 35 mm Coverage
The lens covers Super 35 mm sensors. A telephoto field of view compresses distance and lifts a subject off its background, suiting clean singles and action reached from further back.
T1.4 Maximum Aperture
T1.4 puts this among the fastest cine glass available. Depth of field wide open is measured in inches at close range, which demands an experienced focus puller and rewards one with separation no slower lens produces. It closes to T22.
340° Focus Throw
Its 340° focus throw is long, spreading distance marks widely for precise, repeatable pulls, with a slower full rack as the trade.
Cooke /i Metadata
The lens reports focus distance, aperture, focal length, and serial number to the camera frame by frame. That metadata travels with the footage into post, where VFX can match a CG camera to the real one instead of measuring the set afterwards.
Focus & Handling
85 cm Minimum Focus
Mount & Rig Integration
PL-Mount
The lens mounts via PL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
110mm Front Diameter
The front element measures 110mm, which fits a compact matte box directly and steps up to a 114 mm clamp with an adapter ring. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
