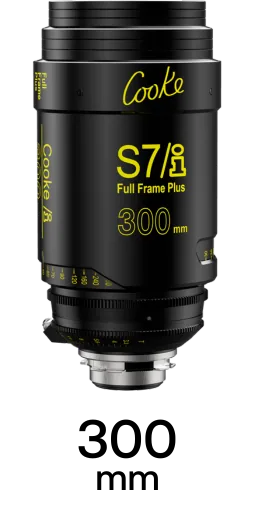

Cooke S7/i 300mm T3.3 Cinema Lens with PL-Mount
Overview
The Cooke S7/i 300mm T3.3 Cinema Lens with PL-Mount is a telephoto spherical prime that covers Vista Vision sensors. Telephoto focal lengths compress perspective and throw backgrounds well out of focus, letting camera operators isolate a subject from a busy environment or reach action at a distance. The lens opens to T3.3 and closes to T22. It uses a PL-Mount with manual focus. Cooke /i metadata passes through the mount for post and VFX workflows.
Features
Key Features
Telephoto Vista Vision Coverage
The lens covers Vista Vision sensors, projecting a 46.3 mm image circle. A telephoto field of view compresses distance and lifts a subject off its background, suiting clean singles and action reached from further back.
T3.3 Maximum Aperture
The lens opens to T3.3 and closes to T22, a moderate maximum aperture suited to well-lit sets and to work that wants deeper depth of field.
270° Focus Throw
Its 270° focus throw sits in the standard range for cine glass, spreading distance marks far enough apart for repeatable pulls without making a full rack slow.
Cooke /i Metadata
The lens reports focus distance, aperture, focal length, and serial number to the camera frame by frame. That metadata travels with the footage into post, where VFX can match a CG camera to the real one instead of measuring the set afterwards.
Focus & Handling
2.1 m Minimum Focus
Mount & Rig Integration
PL-Mount
The lens mounts via PL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
110mm Front Diameter
The front element measures 110mm, which fits a compact matte box directly and steps up to a 114 mm clamp with an adapter ring. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
