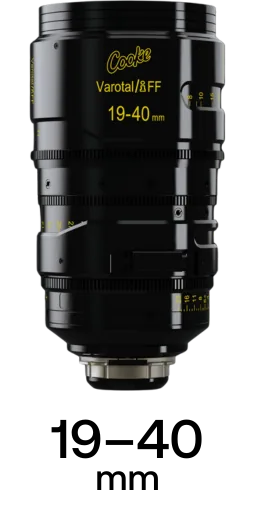

Cooke Varotal/i 19-40mm T2.9 Cinema Lens with PL-Mount
Overview
The Cooke Varotal/i 19-40mm T2.9 Cinema Lens with PL-Mount is an ultra-wide spherical zoom that covers Vista Vision sensors. Ultra-wide coverage takes in a full setting from a short distance, which suits establishing shots, tight interiors, and vehicle work where the camera cannot be moved back. Its 2.1x zoom range allows camera operators to reframe without repositioning the camera, and a constant T2.9 aperture holds exposure steady through the zoom. It uses a PL-Mount with manual focus. Cooke /i metadata passes through the mount for post and VFX workflows.
Features
Key Features
Ultra-Wide Vista Vision Coverage
The lens covers Vista Vision sensors, projecting a 46.3 mm image circle. An ultra-wide field of view keeps interiors, vehicle mounts, and establishing shots workable from close in, where there is no room to move the camera back.
280° Focus Throw
Its 280° focus throw sits in the standard range for cine glass, spreading distance marks far enough apart for repeatable pulls without making a full rack slow.
Cooke /i Metadata
The lens reports focus distance, aperture, focal length, and serial number to the camera frame by frame. That metadata travels with the footage into post, where VFX can match a CG camera to the real one instead of measuring the set afterwards.
Optical Design
2.1x Zoom Range
The 19-40mm range covers 2.1x without a lens change, holding a constant T2.9 through the zoom. Reframing happens on the barrel, letting one operator move between a wide and a tight shot inside a single take.
Focus & Handling
60 cm Minimum Focus
Mount & Rig Integration
PL-Mount
The lens mounts via PL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
114mm Front Diameter
The front element measures 114mm, which matches the 114 mm standard most matte boxes clamp to directly. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
