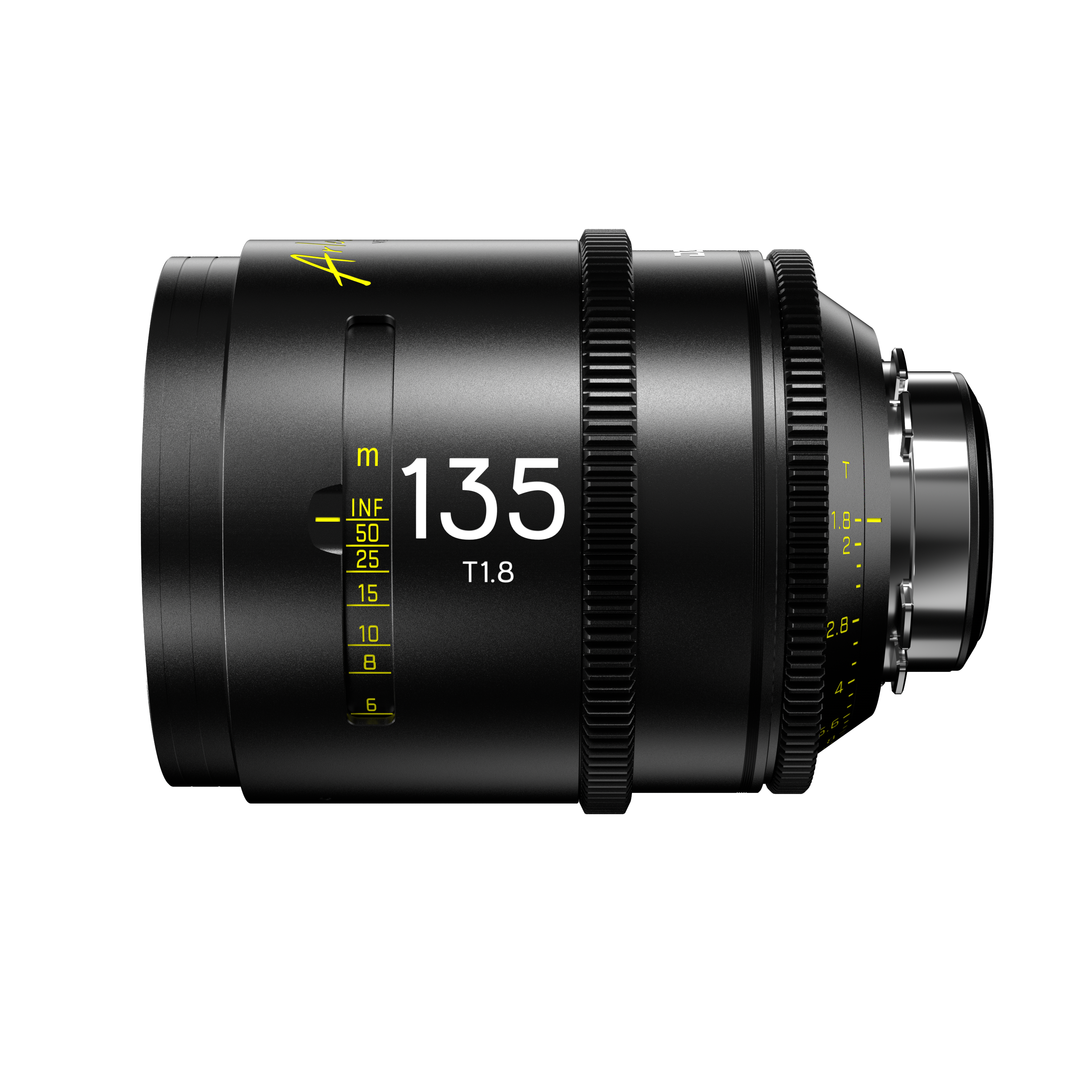

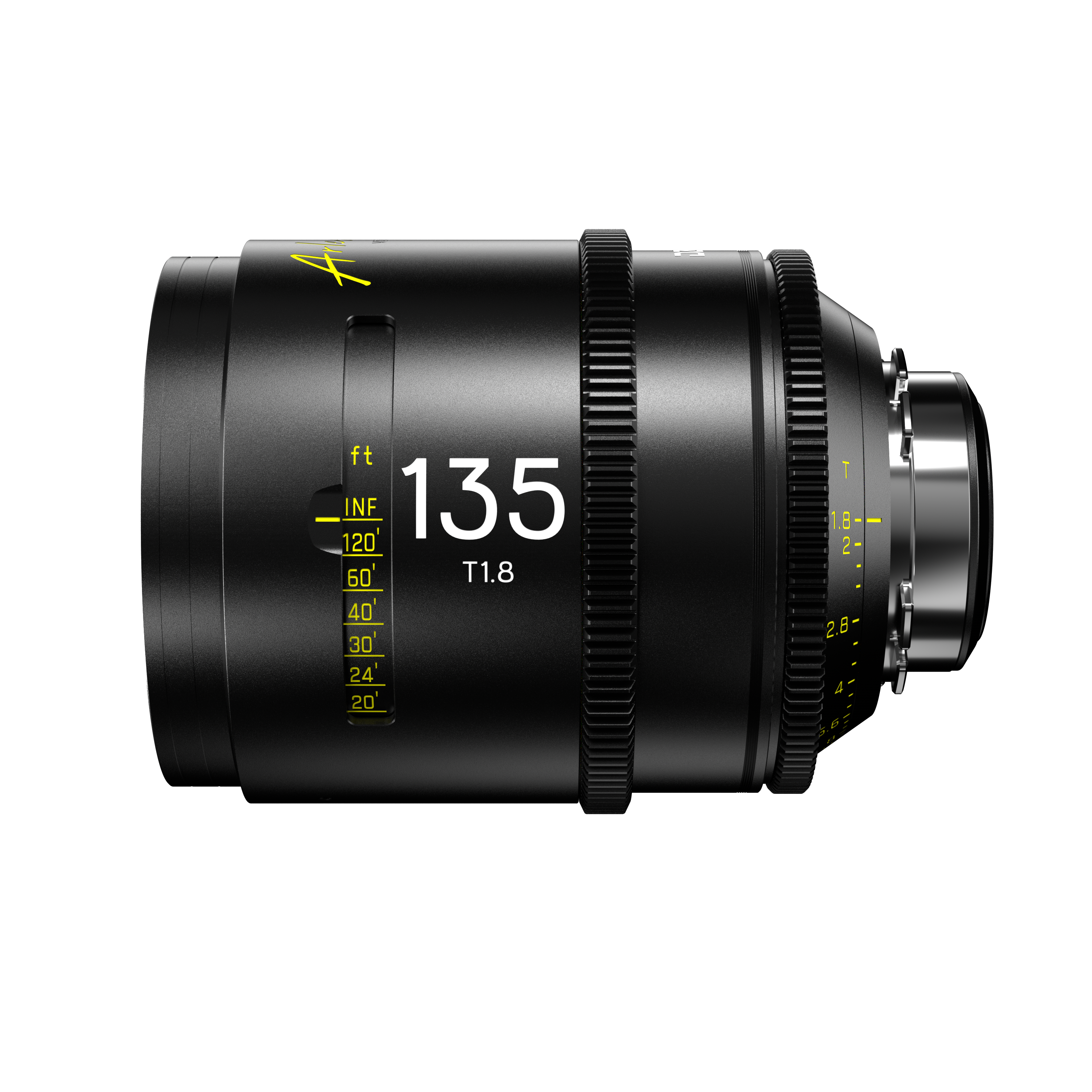

DZOFilm Arles 135mm T1.8 Cinema Lens with PL-Mount
DZOFilm · Arles Prime
Price not listed
Key Features
- Telephoto Vista Vision Coverage
- T1.8 Maximum Aperture
- 270° Focus Throw
- User-Interchangeable Mount
🔒 Log in to add this to a kit.
In the Box
- 1 × Shim Set
Overview
The DZOFilm Arles 135mm T1.8 Cinema Lens with PL-Mount is a telephoto spherical prime that covers Vista Vision sensors. Telephoto focal lengths compress perspective and throw backgrounds well out of focus, letting camera operators isolate a subject from a busy environment or reach action at a distance. A fast T1.8 aperture lets camera operators separate subjects from their backgrounds or get the most out of available lighting when filming in darker environments, and the lens closes to T22. It uses a PL-Mount with manual focus.
Features
Key Features
Telephoto Vista Vision Coverage
The lens covers Vista Vision sensors, projecting a 46.5 mm image circle. A telephoto field of view compresses distance and lifts a subject off its background, suiting clean singles and action reached from further back.
T1.8 Maximum Aperture
At T1.8 the lens separates subjects cleanly from their backgrounds and gets the most out of available lighting when filming in darker environments. It closes to T22.
270° Focus Throw
Its 270° focus throw sits in the standard range for cine glass, spreading distance marks far enough apart for repeatable pulls without making a full rack slow.
User-Interchangeable Mount
The mount can be swapped by the owner, letting one lens follow a camera package across bodies rather than staying tied to whichever mount it shipped with. That matters most to owner-operators buying into a system they expect to change.
Focus & Handling
90 cm Minimum Focus
Mount & Rig Integration
PL-Mount
The lens mounts via PL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies. It operates fully manually and passes no metadata to the camera.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
95mm Front Diameter
The front element measures 95mm, which fits a compact matte box directly and steps up to a 114 mm clamp with an adapter ring. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
86mm Filter Thread
The front accepts 86mm screw-in filters behind a 95mm front element. A matte box clamps to the outside diameter instead, which is what most cine setups use to avoid re-threading filters between lenses.
