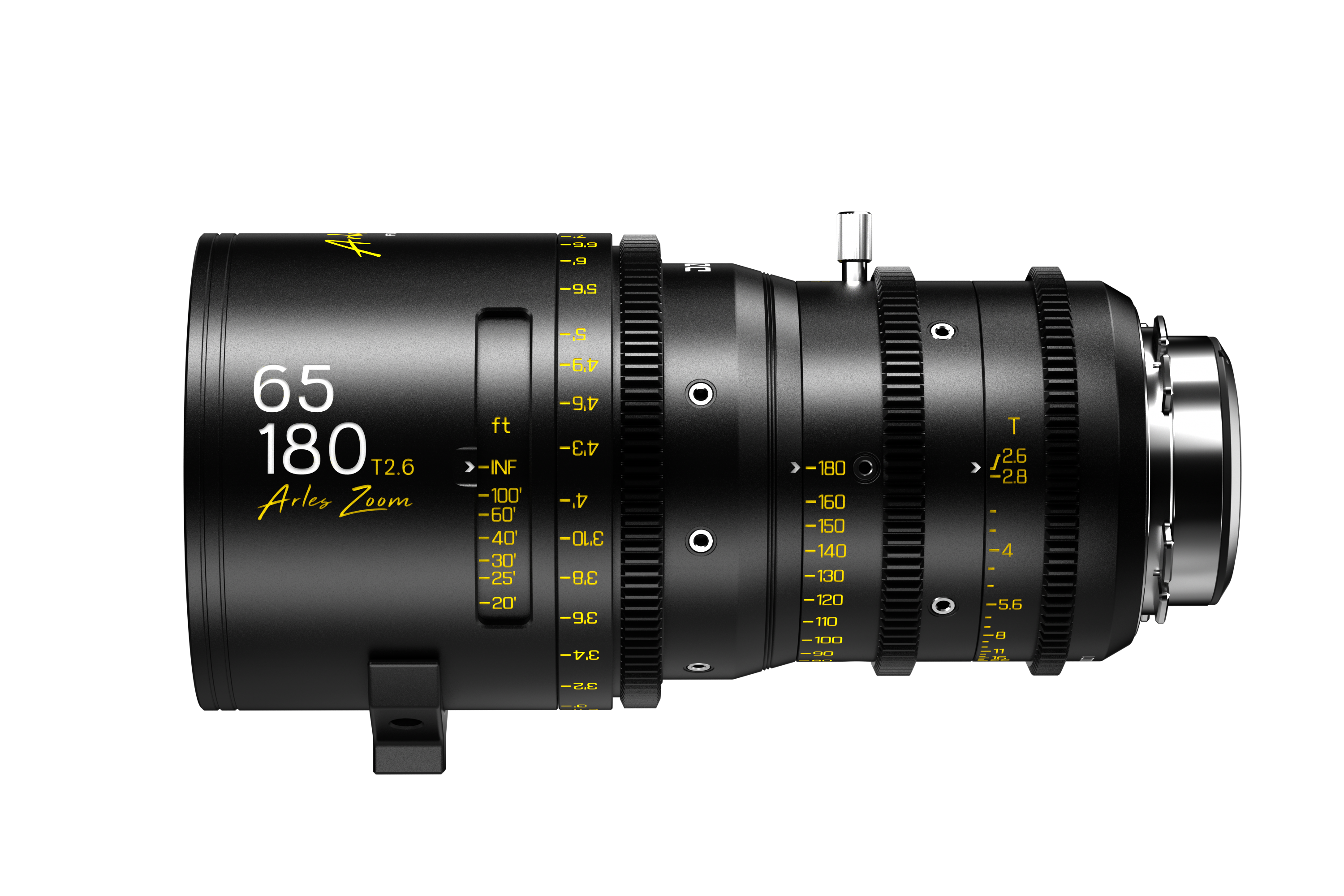

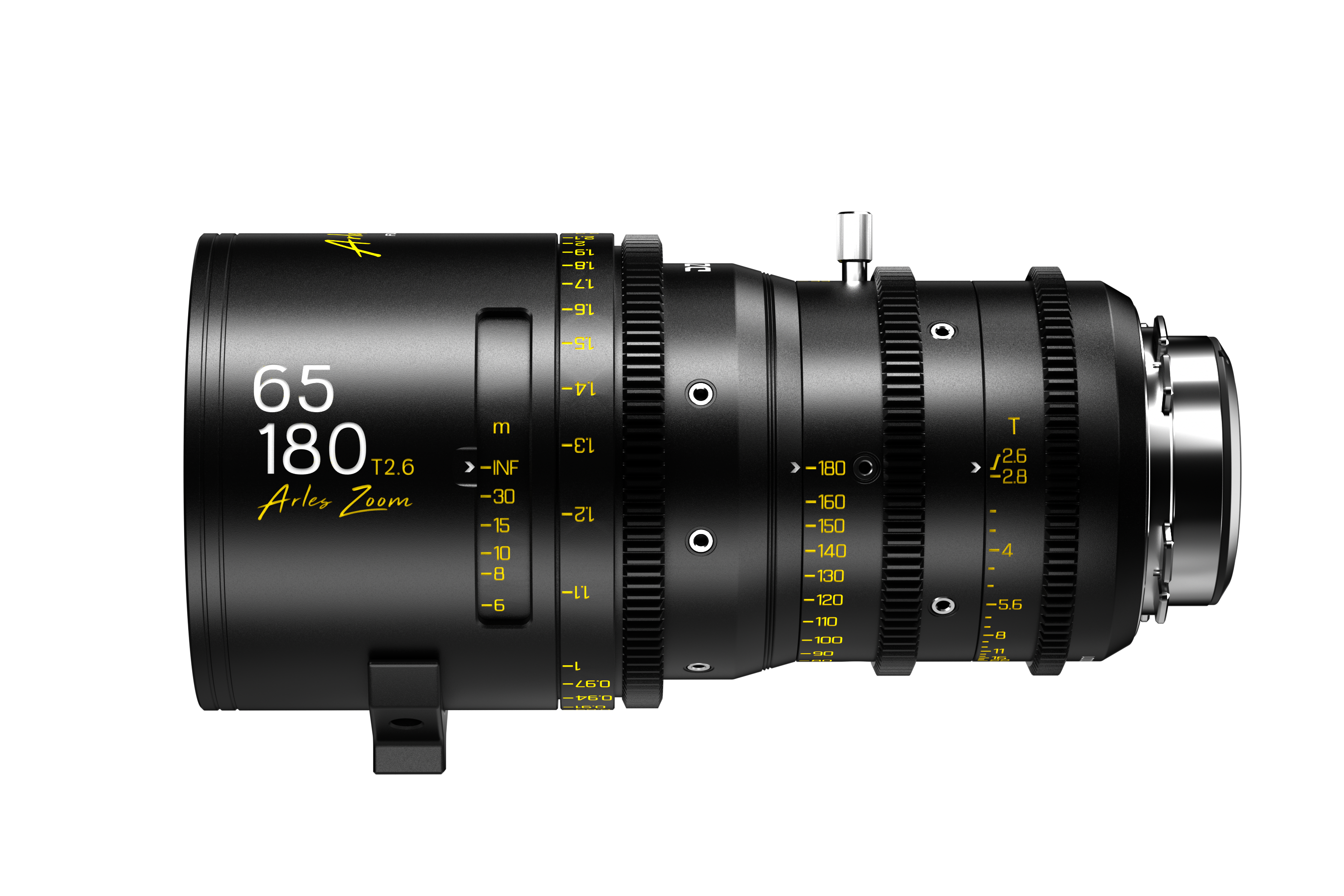

DZOFilm Arles Zoom 65-180mm T2.6 Cinema Lens with PL-Mount
Overview
The DZOFilm Arles Zoom 65-180mm T2.6 Cinema Lens with PL-Mount is a telephoto spherical zoom that covers Full Frame sensors. Telephoto focal lengths compress perspective and throw backgrounds well out of focus, letting camera operators isolate a subject from a busy environment or reach action at a distance. Its 2.8x zoom range allows camera operators to reframe without repositioning the camera, and a constant T2.6 aperture holds exposure steady through the zoom. A fast T2.6 aperture lets camera operators separate subjects from their backgrounds or get the most out of available lighting when filming in darker environments, and the lens closes to T22. It uses a PL-Mount with manual focus.
Features
Key Features
Telephoto Full Frame Coverage
The lens covers Full Frame sensors, projecting a 43.5 mm image circle. A telephoto field of view compresses distance and lifts a subject off its background, suiting clean singles and action reached from further back.
T2.6 Maximum Aperture
At T2.6 the lens separates subjects cleanly from their backgrounds and gets the most out of available lighting when filming in darker environments. It closes to T22.
270° Focus Throw
Its 270° focus throw sits in the standard range for cine glass, spreading distance marks far enough apart for repeatable pulls without making a full rack slow.
User-Interchangeable Mount
The mount can be swapped by the owner, letting one lens follow a camera package across bodies rather than staying tied to whichever mount it shipped with. That matters most to owner-operators buying into a system they expect to change.
Optical Design
2.8x Zoom Range
The 65-180mm range covers 2.8x without a lens change, holding a constant T2.6 through the zoom. Reframing happens on the barrel, letting one operator move between a wide and a tight shot inside a single take.
Focus & Handling
89 cm Minimum Focus
Mount & Rig Integration
PL-Mount
The lens mounts via PL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies. It operates fully manually and passes no metadata to the camera.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
95mm Front Diameter
The front element measures 95mm, which fits a compact matte box directly and steps up to a 114 mm clamp with an adapter ring. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
86mm Filter Thread
The front accepts 86mm screw-in filters behind a 95mm front element. A matte box clamps to the outside diameter instead, which is what most cine setups use to avoid re-threading filters between lenses.
