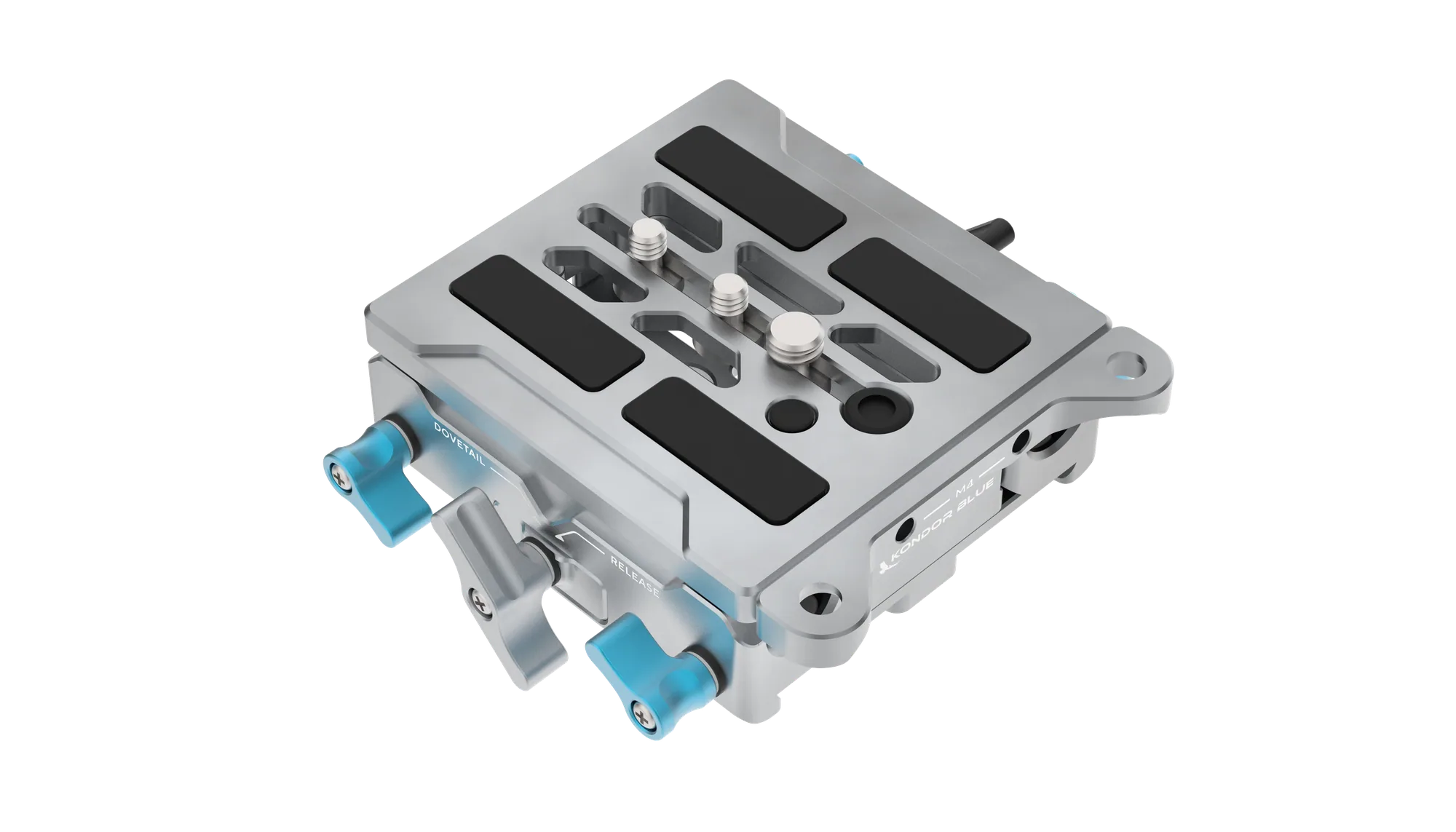

The Kondor Blue URSA Cine LWS ARRI Bridge Plate is a 15mm LWS baseplate designed for the Blackmagic URSA Cine. It mounts the camera through Kondor Blue's quick-release riser, takes 1/4"-20 and 3/8"-16 camera screws, attaches to a tripod or gimbal through an ARRI-standard dovetail receiver, and takes 1/4"-20 and 3/8"-16 tripod screws underneath.
Key Features
15mm LWS Rod Support
Holds a pair of 15mm rods 60 mm apart under the lens — the lightweight (LWS) standard for follow focuses, matte boxes and lens supports.
Designed for the Blackmagic URSA Cine
The maker built it around the Blackmagic URSA Cine; other cameras can use it too.
Kondor Blue Quick-Release Riser
The camera mounts on Kondor Blue's quick-release riser plate.
1/4"-20 / 3/8"-16 Camera Screws
Screws into the threaded sockets on the bottom of the camera or its riser.
ARRI Dovetail Receiver
Slides onto an ARRI-standard dovetail plate on a tripod head or gimbal and clamps in place.
1/4"-20 / 3/8"-16 Tripod Threads
Threaded sockets underneath take a tripod screw or a quick-release plate directly.
1/4"-20 / 3/8"-16 Accessory Mounts
