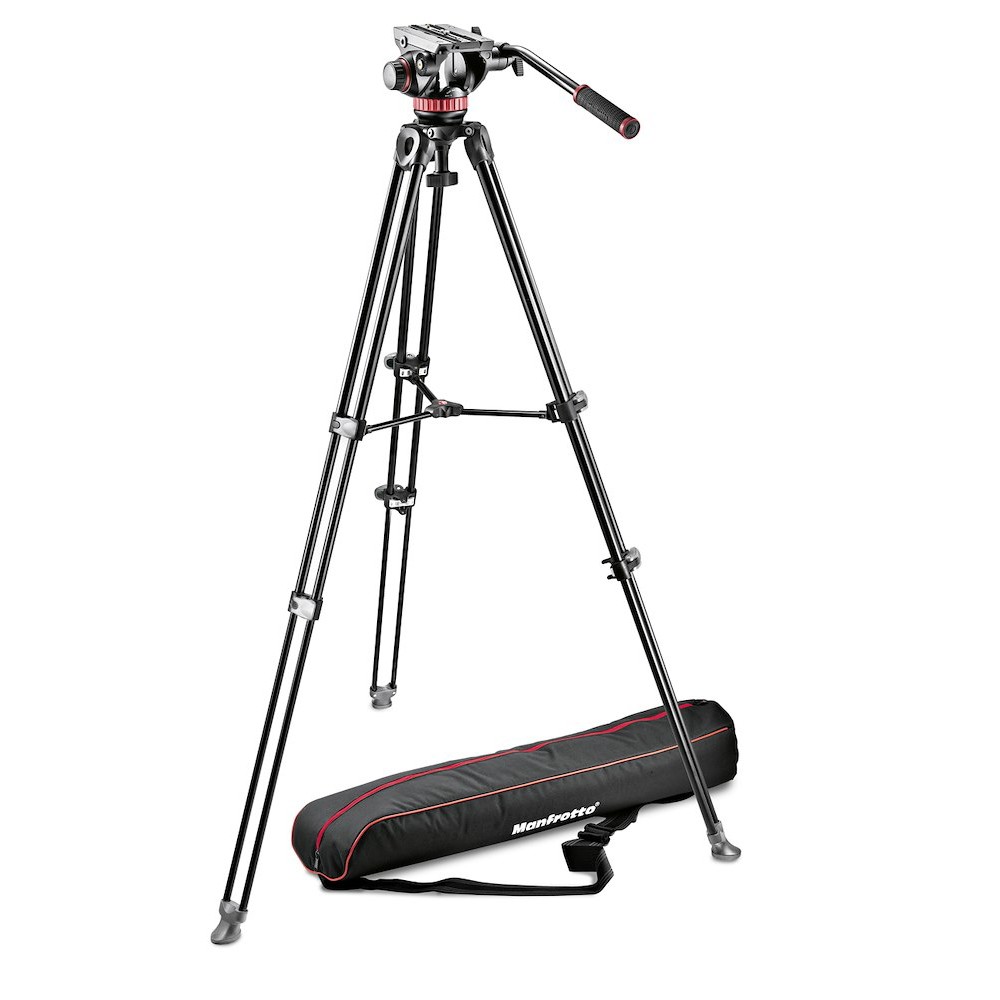

The Manfrotto 502 with MVT502AM Aluminum Twin-Leg Tripod is a complete tripod system: a 75mm bowl fluid head on 2-stage aluminum legs, rated for up to 10 kg. The head has a fixed counterbalance, has continuous fluid drag, and takes Manfrotto 501PL-style plates. The legs reach 156 cm at the camera, go as low as 70.5 cm, fold to 75 cm, lock with flip locks, and take a mid-level spreader. It comes with a 502 75mm fluid head, MVT502AM telescopic twin-leg aluminum tripod legs, a carrying bag, and a pan bar.
Key Features
Up to 10 kg Payload
The maker's rated payload for the camera package the system carries and balances.
156 cm Working Height
It works as low as 70.5 cm, measured from the ground to the camera plate. Folded, it measures 75 cm end to end, for transport and storage.
75mm Bowl
The head sits in a 75mm bowl, so it levels on the legs and swaps for any other 75mm-bowl head.
Fixed Counterbalance
A preset counterbalance suits cameras near one weight; it does not adjust.
Continuous Drag
Fluid drag on pan and tilt adjusts continuously, to suit any speed of move.
Manfrotto 500 Series Quick Release
Takes Manfrotto 501PL-style camera plates, which slide in from the side and lock.
2-Stage Legs
Two telescoping sections per leg extend the height range while staying rigid.
Aluminum Legs
Aluminum tubes stand up to hard use and rough handling on set and on location.
Mid-Level Spreader
A mid-level spreader braces the legs while leaving the ground clear beneath them.
Flip Locks
Lever locks on each leg section open and close with a single flick.
+90°/-80° Tilt
Bubble Level
