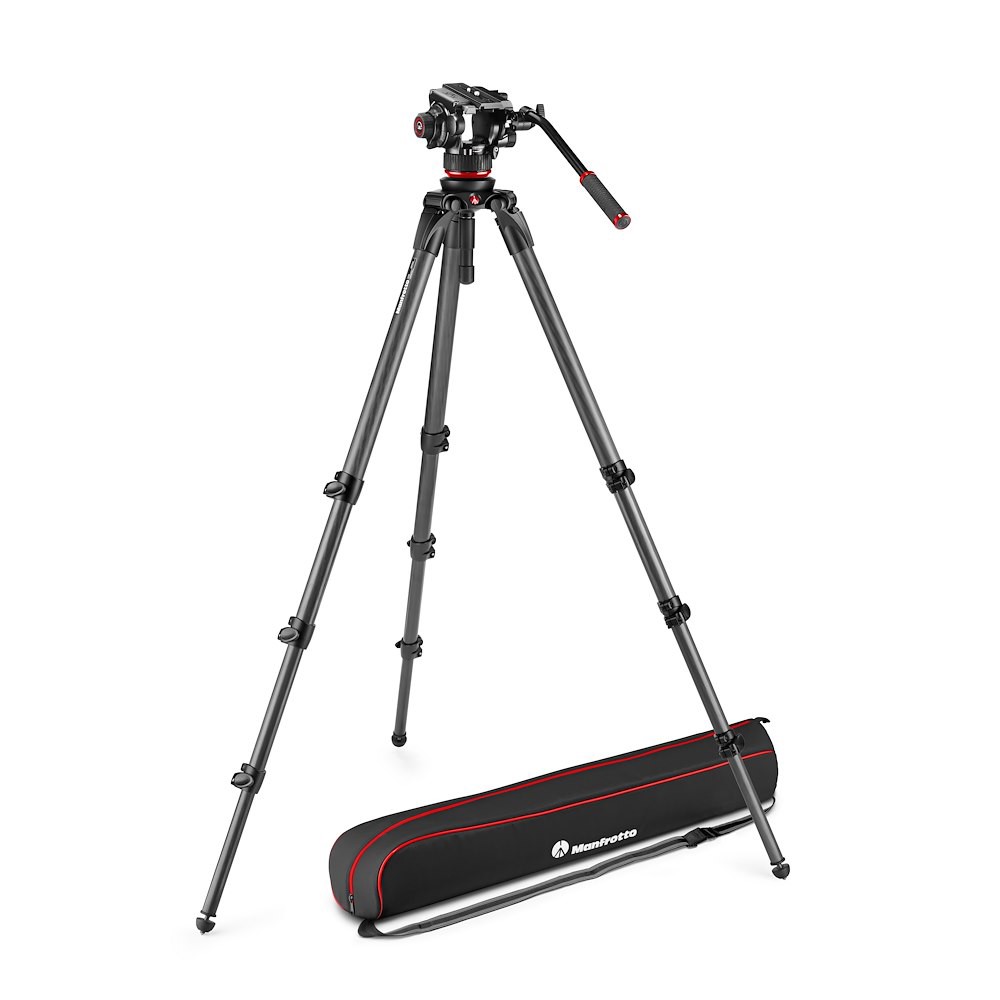

The Manfrotto 504X with 536 MPRO Carbon Fiber Tripod is a complete tripod system: a 100mm bowl fluid head on 3-stage carbon fiber legs, rated for up to 12 kg. The head has 4 counterbalance steps, has continuous fluid drag, and takes Manfrotto 501PL-style plates. The legs reach 218 cm at the camera, go as low as 42 cm, fold to 87 cm, lock with flip locks, and stand without a spreader. It comes with a 504X flat base fluid head, 536 MPRO 3-stage carbon fiber tripod legs, a 75mm bowl adapter, a carrying bag, and a pan bar.
Key Features
Up to 12 kg Payload
The maker's rated payload for the camera package the system carries and balances.
218 cm Working Height
It works as low as 42 cm, measured from the ground to the camera plate. Folded, it measures 87 cm end to end, for transport and storage.
100mm Bowl
The head sits in a 100mm bowl, so it levels on the legs and swaps for any other 100mm-bowl head.
4 Steps Counterbalance
Selectable counterbalance steps match the head to the camera's weight and center of gravity.
Continuous Drag
Fluid drag on pan and tilt adjusts continuously, to suit any speed of move.
Manfrotto 500 Series Quick Release
Takes Manfrotto 501PL-style camera plates, which slide in from the side and lock.
3-Stage Legs
Three telescoping sections per leg reach the widest height range and fold shortest.
Carbon Fiber Legs
Carbon fiber tubes keep the legs light to carry and damp vibration in the shot.
No Spreader Needed
Each leg locks at its own angle, so the legs stand without a spreader.
Flip Locks
Lever locks on each leg section open and close with a single flick.
+90°/-70° Tilt
Illuminated Bubble Level
The bubble level is lit, so the head can be leveled in low light.
