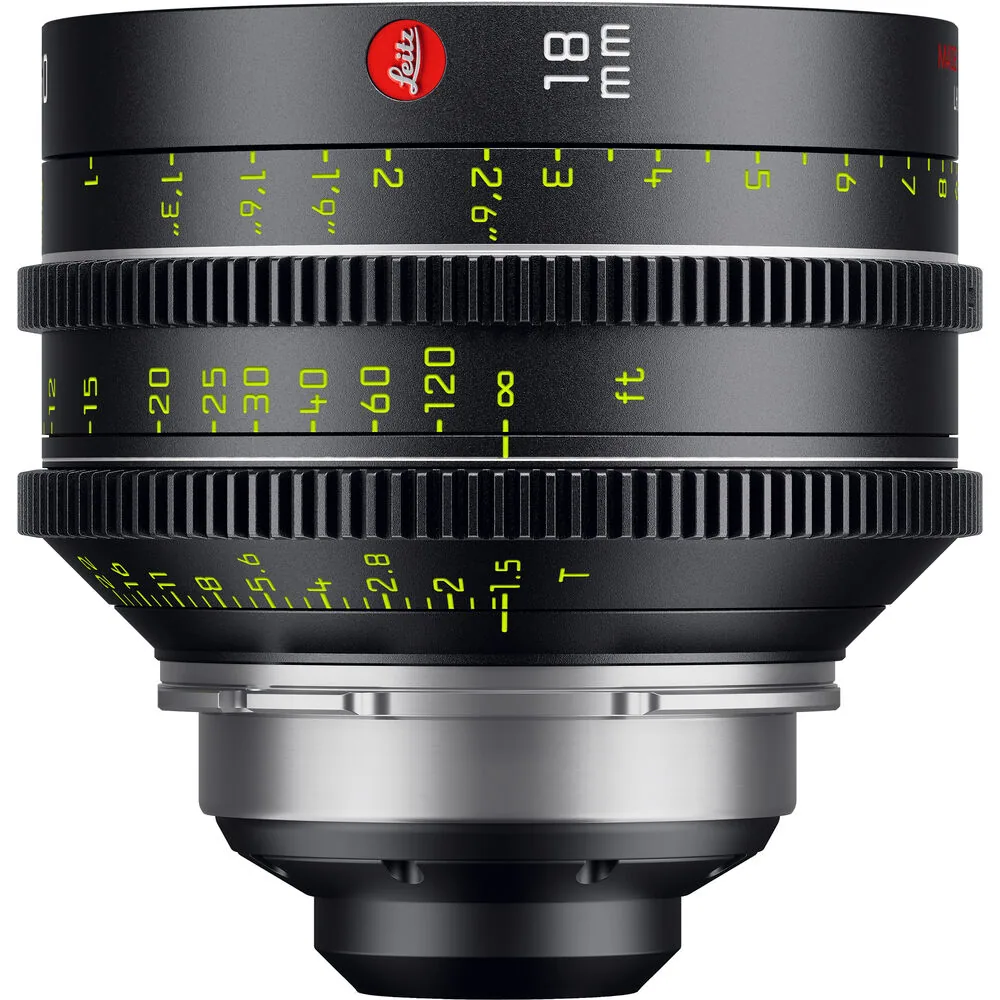

Leitz HUGO 18mm T1.5 Cinema Lens with LPL-Mount
Overview
The Leitz HUGO 18mm T1.5 Cinema Lens with LPL-Mount is an ultra-wide spherical prime that covers Full Frame sensors. Ultra-wide coverage takes in a full setting from a short distance, which suits establishing shots, tight interiors, and vehicle work where the camera cannot be moved back. A fast T1.5 aperture lets camera operators separate subjects from their backgrounds or get the most out of available lighting when filming in darker environments. It uses an LPL-Mount with manual focus. Cooke /i metadata passes through the mount for post and VFX workflows. The focus barrel is available in either imperial or metric markings.
Features
Key Features
Ultra-Wide Full Frame Coverage
The lens covers Full Frame sensors, projecting a 43.3 mm image circle. An ultra-wide field of view keeps interiors, vehicle mounts, and establishing shots workable from close in, where there is no room to move the camera back.
T1.5 Maximum Aperture
At T1.5 the lens separates subjects cleanly from their backgrounds and gets the most out of available lighting when filming in darker environments.
Imperial or Metric Focus Scale
The lens ships with either an imperial or a metric focus barrel. The scale is fixed at purchase rather than switchable, so a rental order or a set build has to specify which one is needed.
Cooke /i Metadata
The lens reports focus distance, aperture, focal length, and serial number to the camera frame by frame. That metadata travels with the footage into post, where VFX can match a CG camera to the real one instead of measuring the set afterwards.
Focus & Handling
22 cm Minimum Focus
Mount & Rig Integration
LPL-Mount
The lens mounts via LPL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
95mm Front Diameter
The front element measures 95mm, which fits a compact matte box directly and steps up to a 114 mm clamp with an adapter ring. Matte box fit follows from this measurement rather than from the filter thread, since the clamp grips the outside of the barrel.
92mm Filter Thread
The front accepts 92mm screw-in filters behind a 95mm front element. A matte box clamps to the outside diameter instead, which is what most cine setups use to avoid re-threading filters between lenses.
