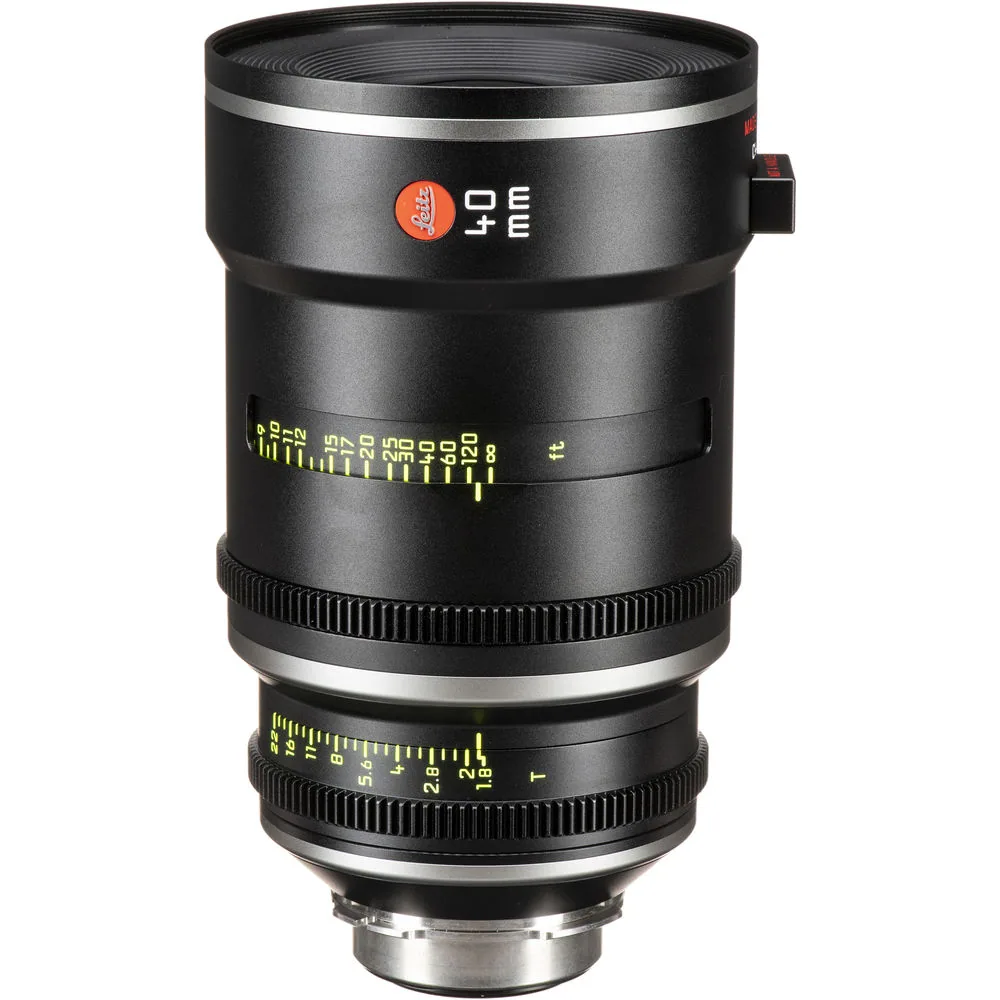

Leitz Prime 40mm T1.8 Cinema Lens with LPL-Mount
Overview
The Leitz Prime 40mm T1.8 Cinema Lens with LPL-Mount is a standard spherical prime that covers Vista Vision sensors. A standard focal length sees close to natural human perspective, which suits dialogue and coverage where the framing should not draw attention to itself. A fast T1.8 aperture lets camera operators separate subjects from their backgrounds or get the most out of available lighting when filming in darker environments, and the lens closes to T22. It uses an LPL-Mount with manual focus. Cooke /i metadata passes through the mount for post and VFX workflows. The focus barrel is available in either imperial or metric markings.
Features
Key Features
Standard Vista Vision Coverage
The lens covers Vista Vision sensors, projecting a 46.5 mm image circle. A standard field of view sits near natural perspective, the neutral option for dialogue and everyday coverage where framing should not announce itself.
T1.8 Maximum Aperture
At T1.8 the lens separates subjects cleanly from their backgrounds and gets the most out of available lighting when filming in darker environments. It closes to T22.
270° Focus Throw
Its 270° focus throw sits in the standard range for cine glass, spreading distance marks far enough apart for repeatable pulls without making a full rack slow.
Imperial or Metric Focus Scale
The lens ships with either an imperial or a metric focus barrel. The scale is fixed at purchase rather than switchable, so a rental order or a set build has to specify which one is needed.
Interchangeable Mount
The mount can be changed, leaving the lens free to follow a camera package rather than staying tied to the body it shipped for. Check which mounts the manufacturer offers before planning around it.
Cooke /i Metadata
The lens reports focus distance, aperture, focal length, and serial number to the camera frame by frame. That metadata travels with the footage into post, where VFX can match a CG camera to the real one instead of measuring the set afterwards.
Focus & Handling
35 cm Minimum Focus
Mount & Rig Integration
LPL-Mount
The lens mounts via LPL-Mount, fitting industry-standard cinema cameras and adapting to most modern cinema and hybrid bodies.
0.8-Pitch Cine Gears
The lens carries 0.8-pitch cine gears, the standard pitch for follow focus units and lens motors. Compatibility with lens control systems lets a solo operator make consistent, repeatable focus pulls, or a camera assistant control the lens remotely.
112mm Filter Thread
The front accepts 112mm screw-in filters behind a 114mm front element. A matte box clamps to the outside diameter instead, which is what most cine setups use to avoid re-threading filters between lenses.
